Specify custom box dimensions by naming the measurement basis, units, product orientation, and usable space—not just three numbers. For product fit, start with the complete packed product and a defined internal cavity. For a shelf, shipping carton, or packing machine, also state the maximum external size. Ask the supplier to turn those requirements into a dimensioned structural drawing and a fully assembled sample before approving production.
A quote for “160 × 80 × 35” can describe the product, the inside of the box, or the finished outside. It can also put the same three numbers in a different order. The mistake becomes expensive when artwork, tooling, and inserts are built around an assumption that neither side recorded. This guide explains how buyers can remove that ambiguity across folding cartons, rigid gift boxes, and paper tubes.

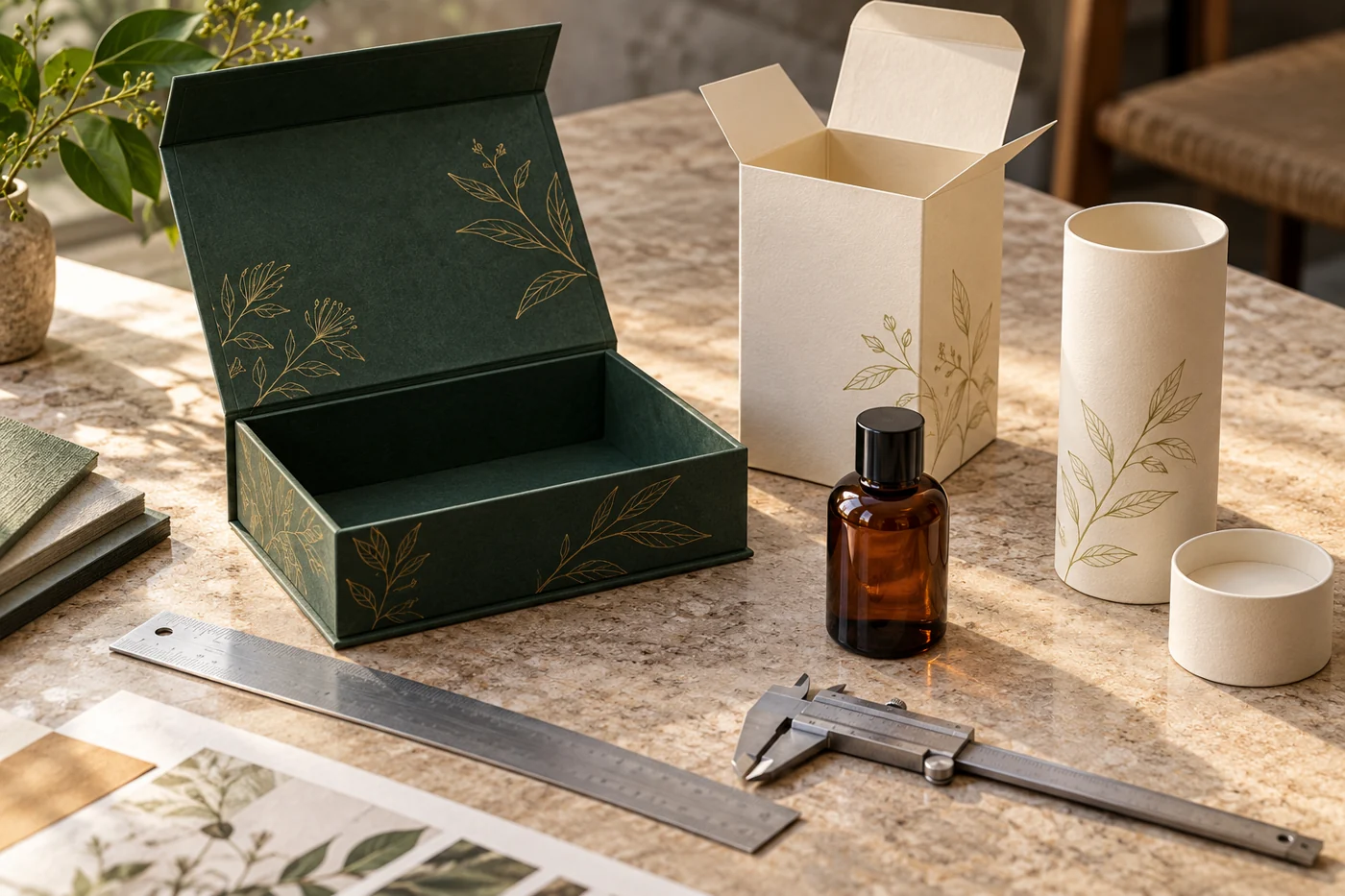

Separate product size, usable internal size, and external size
These measurements answer different questions. Product size describes what goes into the package. Usable internal size describes the space available after the box and its components are assembled. External size describes the finished closed package, including features that affect its envelope. A flat blank or a printed front panel is a fourth measurement; neither is a substitute for the assembled cavity.
| Measurement | Use it for | State the boundary |
|---|---|---|
| Complete product envelope | Starting the structural design | Include cap, sleeve, seal, protrusions, and packed orientation |
| Usable internal cavity | Checking fit and access | Identify insert, lining, closure, and restricted areas |
| Finished external envelope | Shelves, master cartons, machinery | Measure the closed pack, including projecting parts |
| Flat blank or panel size | Converting and artwork placement | Refer to the supplier’s approved dieline revision |
For a paper-wrapped book-style gift box, the closed cover can extend beyond the base cavity. Copying its outside length into an “internal size” field will therefore describe a different box. Ask for both the usable base cavity and the finished closed envelope, with the cover and hinge shown on the drawing.
Use a drawing to fix the direction of every dimension
Write the unit beside the dimensions and label each direction on a sketch. Do not assume that “depth” means the same thing to your designer, buyer, and converter. A slim upright carton may be described by front width, side depth, and height, while a shallow gift box may be described by its opening length, opening width, and vertical depth.
The FEFCO corrugated case code defines internal case dimensions in millimeters as length × width × height, with length and width related to the opening and height running to the base. It also defines dimensions in individual construction drawings. That is a useful communication convention for corrugated cases; it should not be silently imposed on every folding carton or rigid box. For those structures, agree on the labeled axes in the actual supplier drawing.
For a custom flip-top cigarette pack, show the front face, lid opening, hinge position, and intended upright orientation. A photograph with arrows can clarify the brief, but the released structural drawing should carry the authoritative measurements. Use one primary unit throughout the purchase specification; if a converted unit is shown, identify it as a reference rather than creating two competing targets.

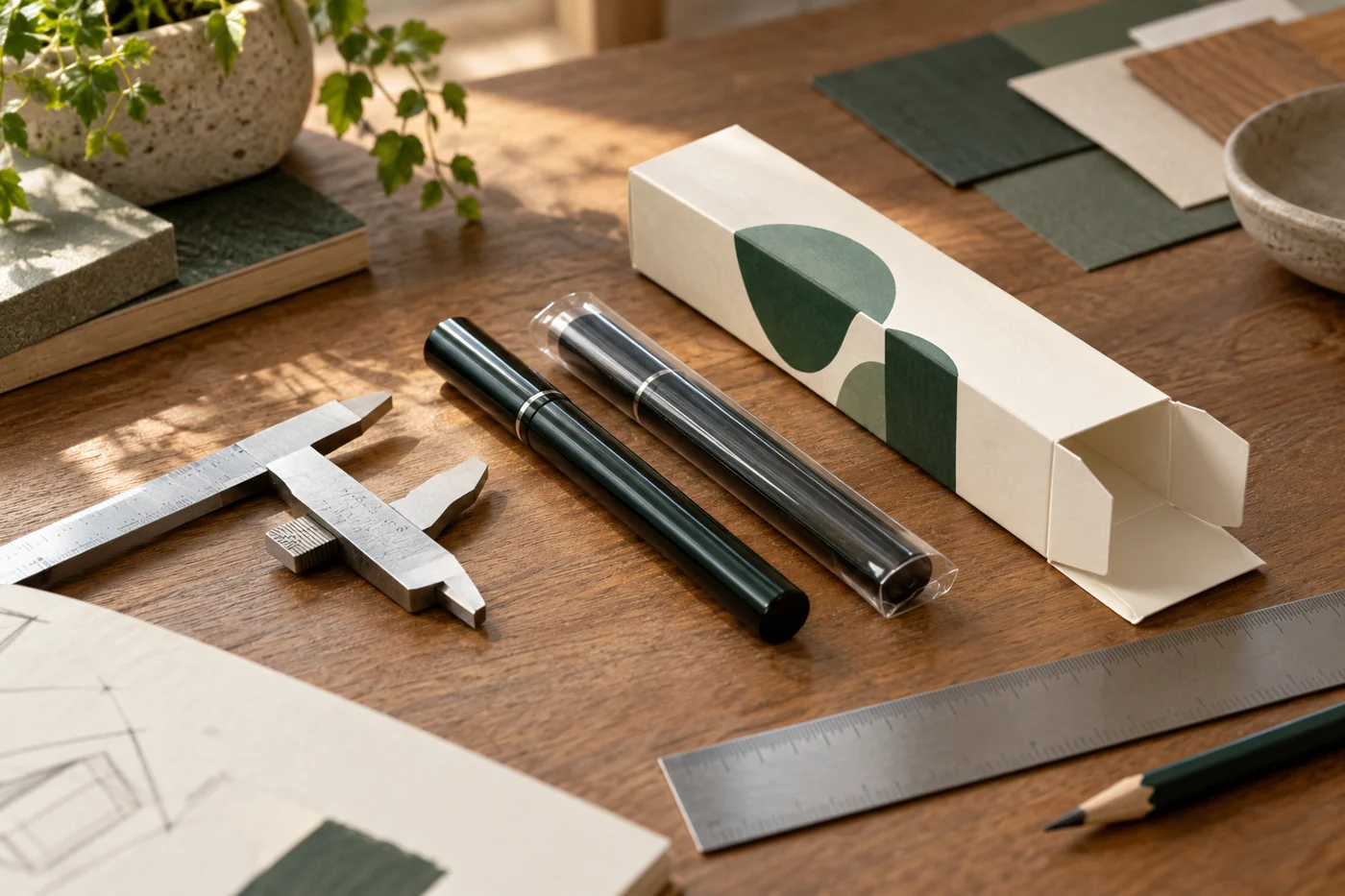

Measure the product as it will actually be packed
A product engineering drawing is useful, but the packed object may be larger. Include protective sleeves, end seals, caps, labels, shrink bands, cables, or folded instructions that share the cavity. For soft or irregular objects, define the packing arrangement before measuring. “Fits one product” is incomplete if the product can be loaded in several orientations.
On a custom disposable-device packaging program, record the widest cap or mouthpiece and any protective sleeve, not only the central body. The product page offers several structures, so also state whether the quote is for a tuck carton, drawer, or another construction. The same product dimensions do not produce the same external size in every format.
Measure more than one representative product when variation is expected. Record the measured range and ask the product supplier whether larger production variants exist. A packaging designer can work from an agreed upper envelope; a single attractive prototype may not represent the eventual batch. Do not compress a sleeve or force a cap inward just to obtain a smaller measurement.
Distinguish working clearance from production tolerance
Clearance is intentional space that allows loading, removal, and the chosen presentation. Tolerance is the permitted variation around a specified manufactured dimension. Adding clearance does not define the converter’s tolerance, and a tolerance does not automatically create usable clearance. Ask for each separately, with the measurement method and acceptance limits.
There is no dependable universal “add 2 mm” rule for every paper package. The right allowance depends on shape, loading direction, material, insert design, closure, and the buyer’s fit priorities. A rigid bottle, a soft pouch, and a wrapped chocolate bar need different decisions. Too little space can prevent loading; too much can create movement or a poor presentation.
Once the measurement basis is agreed, unwanted rotation or rattling calls for a separate retention review. The guide to controlling product movement inside custom packaging addresses contact points and insert performance; this article addresses what the dimensions in your purchase specification actually mean.
Account for walls, inserts, and the space the closure consumes
Board thickness changes the relationship between flat geometry, internal space, and finished size. Esko’s ArtiosCAD documentation treats caliper as board thickness and separately describes inside-loss and outside-gain allowances associated with folding or gluing. The practical implication is that the converter needs the material construction when developing the dieline. A GSM value alone does not describe all the geometry.
Packly’s own design workflow likewise asks for internal dimensions and material thickness before generating a structural template. These are examples of defined design inputs, not evidence that every supplier uses identical allowances. Let the structural designer calculate the folds and joints rather than enlarging each artwork panel yourself.

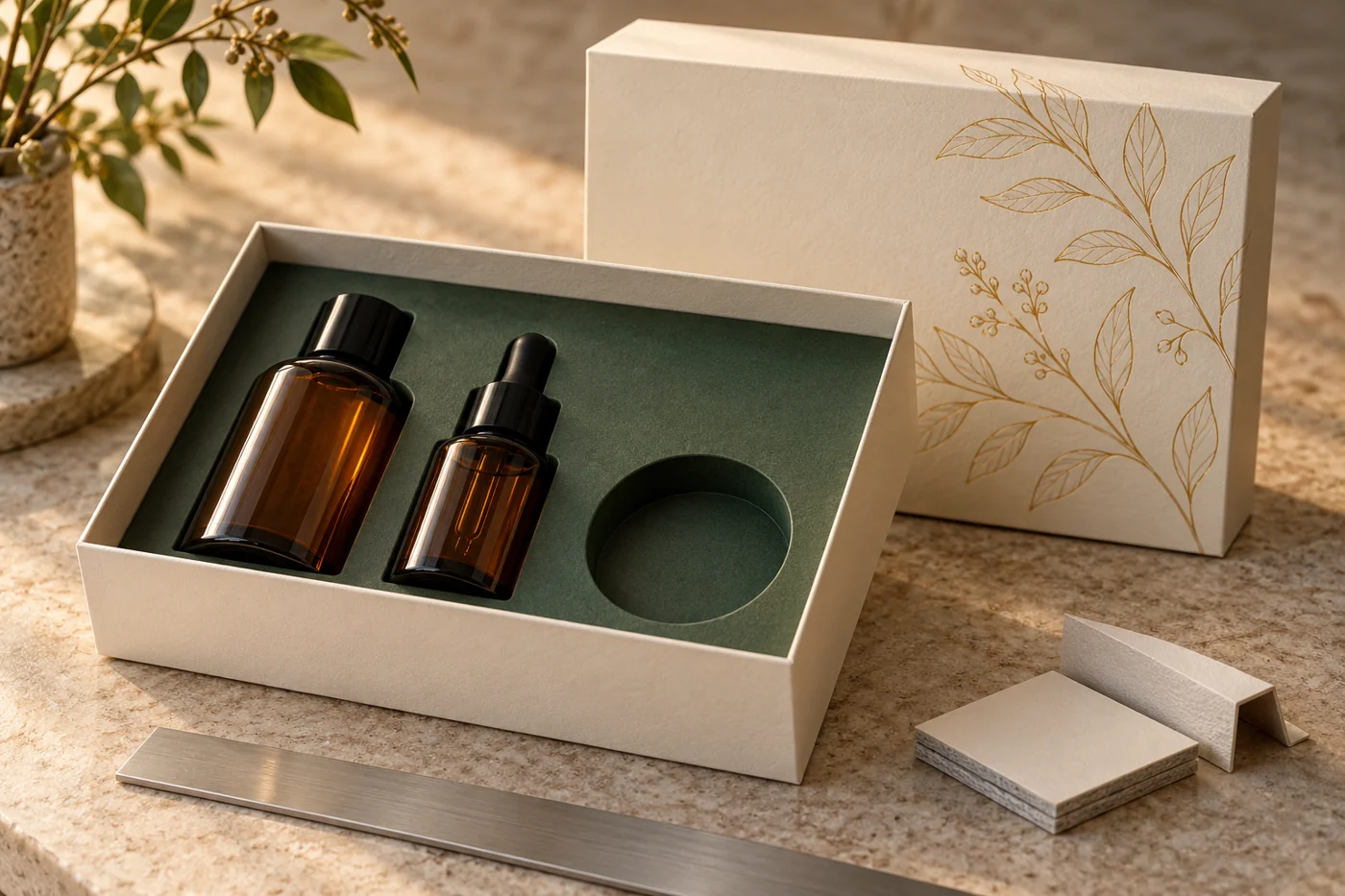

In a gift set, insert apertures, dividers, and an elevated platform create a second fit problem inside the box. An insert can hold a bottle securely while leaving insufficient finger access, or it can raise the bottle until the lid touches the cap. Specify the product position and the usable height above the insert, not only the empty base dimensions.
A simple dimensional budget
Consider an illustrative wrapped item whose agreed maximum envelope is 150 × 70 × 20 mm. Suppose the buyer and converter choose 2 mm total clearance in length and width, and 3 mm total clearance in height. The initial cavity target is then 152 × 72 × 23 mm. “Total” matters: it is not 2 mm on each side. These numbers are a planning example, not recommended production allowances.
If a platform occupies 5 mm of vertical space, a 23 mm bare cavity leaves only 18 mm above that platform. The designer must revise the cavity, platform, or product position. Wall thickness and closure details still have to be added when determining the finished external envelope. This small budget prevents a buyer from approving an apparently correct box dimension while overlooking the insert.
Paper tubes need diameter and usable height definitions
A tube description such as “60 × 150 mm” is particularly ambiguous. Does 60 mm mean internal diameter or external diameter? Does 150 mm mean total closed height, body height, or usable height below the cap? Is there a bottom pad, shoulder, or insert reducing the space?
The custom luxury box and removable-cap paper tube collection lists diameter, height, cap overlap, and internal support as design considerations. For a bottle, specify the maximum product diameter including its label or sleeve, the assembled height including the cap, and the required removal access. Request a drawing that shows the usable bore and closed height separately. Treat the tube as outer packaging; size approval does not qualify it as a liquid container or establish food-contact suitability.

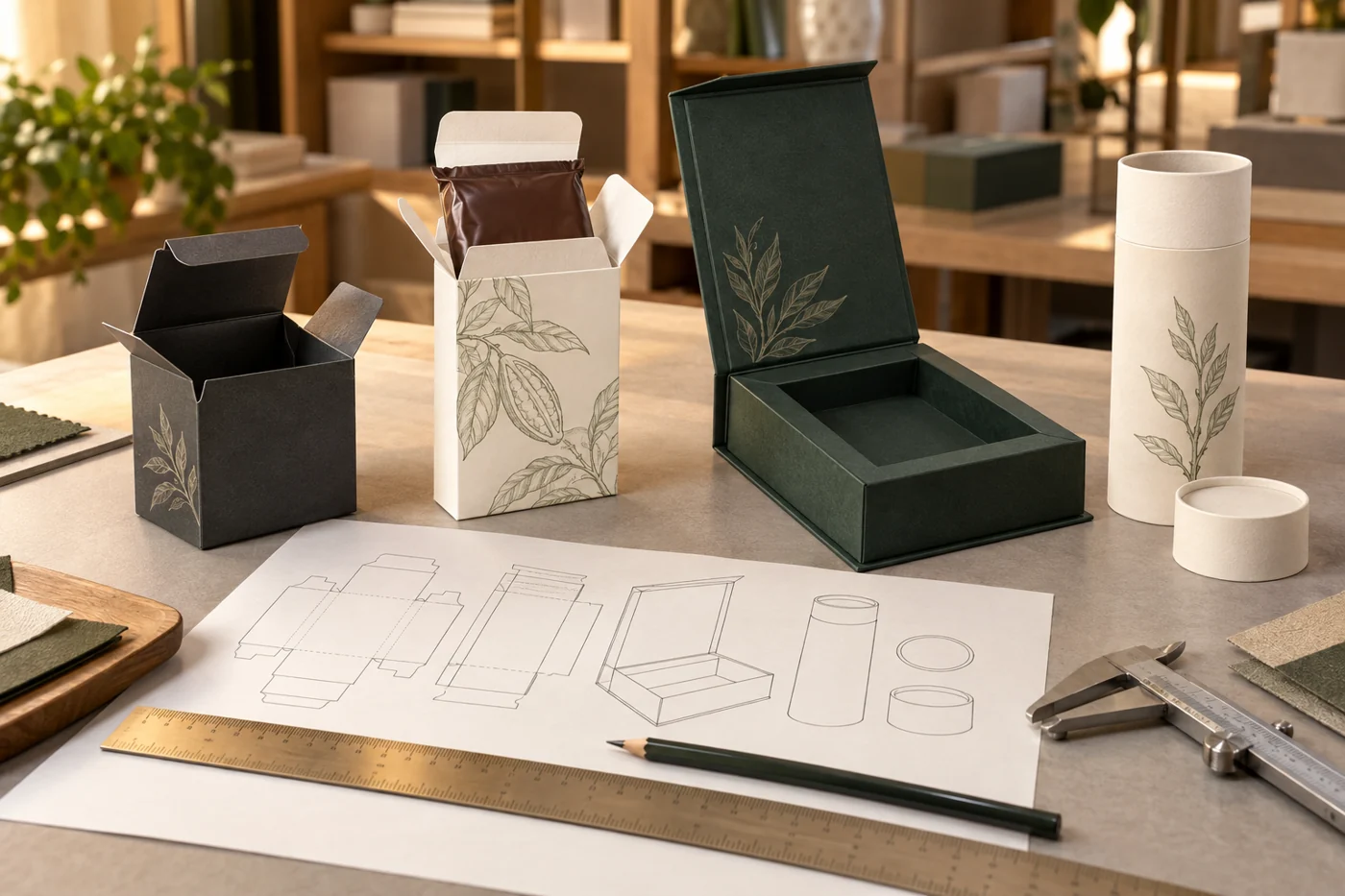

Approve dimensions with the real loading and closing sequence
A ruler across an open sample checks only part of the requirement. Load the complete product, insert, leaflet, and any protective material in the agreed order. Close the package normally, check for interference, reopen it, and remove the product without damaging the pack. Record where and how measurements were taken.
For custom festive chocolate-bar packaging, measure the wrapped bar rather than its nominal chocolate weight. End folds and seals can define the maximum length or thickness. Test the loaded carton with the actual wrap arrangement; this is a dimensional check and does not establish barrier performance, shelf life, or food-contact compliance.
If the external size is constrained by a display fixture or master carton, test the closed sample there too. A package can fit the product and still fail the downstream requirement. Mark those interfaces as separate approval items, rather than asking a supplier to infer them from the internal size.
What to include in a dimension-ready RFQ
- Product envelope, measured range, weight, and quantity per pack.
- Photographs showing the intended orientation and every protruding part.
- Required internal cavity or a clear request for the supplier to propose it.
- Maximum closed external size, if a shelf, shipper, or machine constrains it.
- Structure, board or wall construction, and any insert or lining.
- Primary units and a labeled sketch identifying each axis.
- Loading, opening, and removal requirements.
- Dimensions requiring an agreed tolerance and measurement method.
- Drawing revision, sample approval record, and change-control owner.
Keep the approved drawing and sample together. If the product cap, wrapper, board, insert, or structure changes, review the dimensions before reordering. A new print design may leave fit untouched, but a changed material or component can invalidate the old dimensional approval. Ask for that review explicitly rather than assuming an unchanged SKU name means an unchanged package.
FAQ
Should I send product dimensions or box dimensions?
Send both when you have them, and label each. If you only know the product size, provide its complete packed envelope and ask the supplier to propose the usable internal cavity and finished external size.
Can I calculate external size by adding twice the board thickness?
That may approximate a simple opposing-wall relationship, but it does not describe every structure. Hinges, folded walls, wraps, overlaps, inserts, and lids can change the envelope. Use the converter’s dimensioned drawing and assembled sample for approval.
Is the front-panel artwork size the internal box size?
No. Panel artwork follows the structural dieline, which includes folds, joints, and production allowances. It should not be treated as a measurement of the assembled usable cavity.
What tolerance should I request?
Identify the functional limits first: the smallest space that accepts the product and the largest external size the next interface accepts. Ask the converter to propose achievable tolerances and a measurement method for the selected construction. Do not impose an arbitrary tight number without checking feasibility.
Turn three numbers into an approved specification
The most useful brief connects measurements to function: what must fit, how it is loaded, what must close, and where the finished package must go. Send PaperBoxPro your product measurements and packaging requirements with a labeled sketch, structure preference, and any external-size limit. Confirm the dimensioned drawing and loaded sample before releasing the order.
