For most slim retail products, start with a tuck-end folding carton when packing speed, flat shipping and unit cost matter most; choose a sleeve-and-tray format when a controlled reveal and stronger product retention justify extra assembly; choose a rigid drawer only when the presentation, reuse and protection benefits can absorb substantially more material, freight volume and handwork. The correct answer depends less on what looks premium in a rendering and more on how the product is loaded, held, opened, displayed and replenished.
This guide gives packaging buyers a practical way to compare those structures for cartridges, pen-shaped devices, small cosmetics, confectionery bars and similarly narrow products. It is a concept-selection guide, not an engineering drawing or a compliance claim. Your converter still needs the exact product, insert, board, closure and distribution requirements before releasing a dieline.
First, define the job the box must do
A box style should solve a sequence of handling problems. Write that sequence down before requesting quotations: how components arrive at the packing station, which end is loaded, whether the product needs an insert, how the pack is closed, how the shopper opens it, and whether it is likely to be returned to the box. A slim product can fit all three structures while behaving very differently in each.
Do not specify “drawer box” or “tuck carton” as if the name were a complete technical specification. The ECMA folding-carton style code illustrates how many distinct carton constructions exist. A purchasing file should therefore include an approved dieline or structural drawing, finished internal dimensions, board and caliper, grain direction where relevant, insert geometry, opening direction and closure method.
Tuck-end carton, sleeve box or rigid drawer: the working comparison
| Decision factor | Tuck-end folding carton | Sleeve with paperboard tray | Rigid drawer box |
|---|---|---|---|
| Best starting use | High-volume retail unit with straightforward loading | Premium reveal with controlled inner movement | Gift-like presentation, reuse or high perceived value |
| Inbound storage | Usually supplied flat | Sleeve may be flat; tray may require forming | Commonly supplied set up |
| Packing work | Low to moderate, depending on bottom and sealing | Moderate because sleeve, tray and insert must align | Moderate to high, especially with fitted inserts and ribbons |
| Product access | Direct through an end flap | Tray slides partly or fully from sleeve | Deliberate pull-out motion with a longer reveal |
| Retention | Depends heavily on fit and insert | Tray walls and insert can control movement | Thick walls plus an engineered insert can feel secure |
| Freight-volume tendency | Lowest when shipped flat | Between the two, depending on tray construction | Highest when shipped assembled |
| Cost tendency | Usually the economical baseline | Middle tier | Highest of the three |
These are selection tendencies, not supplier guarantees. The Paperboard Packaging Council distinguishes folding cartons that can fold flat from rigid set-up boxes that stay erected. That structural difference affects storage and freight before printing, foil, inserts or order quantity are considered.
Choose a tuck-end folding carton for efficient retail packing
A tuck-end carton is the strongest default when a narrow product needs a printed retail shell without an elaborate reveal. It can arrive flat, run through familiar erect-fill-close operations and accept an insert or internal platform where needed. For a buyer comparing premium disposable vape packaging options, the important question is not whether a tuck end is “basic.” It is whether the flap orientation, board stiffness and internal fit let operators load and close the pack consistently.
Check the filling direction and closure
Ask the packing team which face should remain visually clean and which end can carry a seal. Confirm whether both ends are hand-tucked, one end is glued, or a lock-bottom construction is needed. A long, narrow carton can distort if operators force an insert through an opening that is too tight. Allowing assembly clearance without creating obvious rattle is part of the structural sample, not something to solve by artwork.
For custom vape cartridge packaging boxes, the product page shows multiple structure families and insert needs. That makes it a useful example of why the device, closure and retention feature should be quoted together. If child-resistant or tamper-evident performance is required, obtain the applicable market requirements and evidence for the exact finished configuration; a familiar carton silhouette alone does not establish compliance.
Choose sleeve box packaging for a controlled reveal
A paperboard sleeve around a formed tray creates a more deliberate opening sequence than a simple folding carton. It also separates the printable outer shell from the product-holding component. This can be useful when several products share a visual system but require different tray depths or cutouts.
The tradeoff is added coordination. The sleeve must slide without binding or dropping away, the tray must stay square, and any insert must remain located during packing and transit. Ask for the permissible movement in practical terms: should the tray move under its own weight, require a thumb push, or stop before it is fully removed? These are sample-approval decisions, not universal tolerances.
A supplier page covering custom cartridge vape box structures lists tuck-end, slide-drawer, magnetic and other formats. Use that breadth to request like-for-like prototypes rather than comparing an economical blank carton against a fully finished drawer. Hold product size, print coverage, insert and order quantity constant when you want the structure—not the decoration—to drive the decision.
Choose drawer box packaging when the experience earns its cost
A drawer can provide precise product staging and a distinctive opening motion. A folding paperboard sleeve-and-tray version may deliver much of that effect with less bulk; a rigid drawer uses thicker set-up walls and typically arrives assembled. The rigid option can suit limited editions, kits, reusable storage or products whose selling price supports the extra conversion and freight volume.
Two details often decide whether a drawer feels refined or frustrating. First, specify finger access—a thumb notch, ribbon pull or exposed tray edge—that still works when the product is on a crowded shelf. Second, approve slide resistance with finished production-intent materials. Lamination, wrap overlap, humidity and board variation can change the fit.
Compare a documented vape cartridge slide-out box with a rigid drawer paper box for a 1 ml cartridge. Both use a sliding action, but the pages describe different material and insert possibilities. The purchasing lesson is to name the wall construction and insert rather than using “drawer box” as a sufficient specification.
Calculate landed effort, not only the unit-box quote
For a fair comparison, request a cost model that includes the printed box, insert, forming or gluing, packing labor, master-carton quantity, inbound freight volume and expected spoilage during setup. A low unit quote can be misleading when a tray takes longer to load or an assembled rigid box reduces the number of units per shipping carton.
Run a timed pilot at the actual packing station. Record units per person per hour, mis-assembly, cosmetic damage and rework. Also check how easily an operator can identify orientation. A small, asymmetric visual or physical cue may reduce mistakes without adding another component.
Use a physical sample approval ladder
A screen rendering cannot validate flap memory, tray friction, insert retention or scuffing. Use a staged approval process:
- White structural sample: confirm internal dimensions, insertion path, flap operation, product removal and shelf orientation.
- Printed prototype: check artwork position across scores, barcode quiet area, small text, foil or emboss registration and surface rub.
- Packing trial: use production-intent products and operators; time assembly and record failures.
- Pre-production sample: approve the material, finish, insert and closure as a complete configuration.
- Distribution evaluation: define likely hazards and an acceptance criterion before choosing a test method.
ISTA’s design and testing guidance explains that tests should support a defined decision and help evaluate how a package protects its contents during distribution. The appropriate program depends on the packaged product and distribution system. Do not claim transport performance from board thickness or a visual mockup alone.
A seven-question RFQ checklist
- What are the product’s maximum dimensions, mass and vulnerable points?
- Must the package ship flat, or can your warehouse receive set-up boxes?
- Which direction will operators load and customers open the product?
- What movement is acceptable inside the pack, and how will the insert control it?
- Which surfaces need foil, embossing, spot gloss or a protective coating, and why?
- What master-carton, packing-rate and freight information should each quotation include?
- Which sample attributes and distribution outcomes will determine approval?
Frequently asked questions
Is a drawer box always more protective than a tuck-end carton?
No. Protection comes from the complete packaged-product system: wall construction, dimensional fit, insert, closure, secondary packaging and distribution conditions. A well-fitted folding carton can outperform a loose rigid drawer for a particular hazard.
Is sleeve box packaging cheaper than a rigid drawer?
Often, but not automatically. Board, tray construction, insert, finish, assembly and quantity can change the result. Compare quotations with the same dimensions, graphics, insert and packing assumptions.
Should a slim product use foam or paperboard inserts?
Choose after defining retention, surface sensitivity, drop risk, presentation and end-of-life goals. The insert must also suit the chosen loading direction. Approve it inside the finished box, not as an isolated component.
What should be included in packaging sample approval?
At minimum, record the dieline revision, internal dimensions, materials, insert, closure, opening force or feel, print and finish references, product fit, packing observations and acceptance criteria. Photos help, but keep the signed physical reference where practical.
Make the structure decision before decorating it
Shortlist one economical structure and one presentation-led alternative, then test both with the real product and packing process. That approach exposes the tradeoff between flat logistics, packing work, access and perceived value before premium finishes make the comparison harder to read.
If you are preparing an RFQ, send PaperBoxPro the product dimensions, target quantity, preferred opening direction, insert requirement, sales channel and reference images through the packaging enquiry page. Ask for the proposed structure and sample stages to be itemized so the decision can be evaluated on evidence rather than a box-style name.

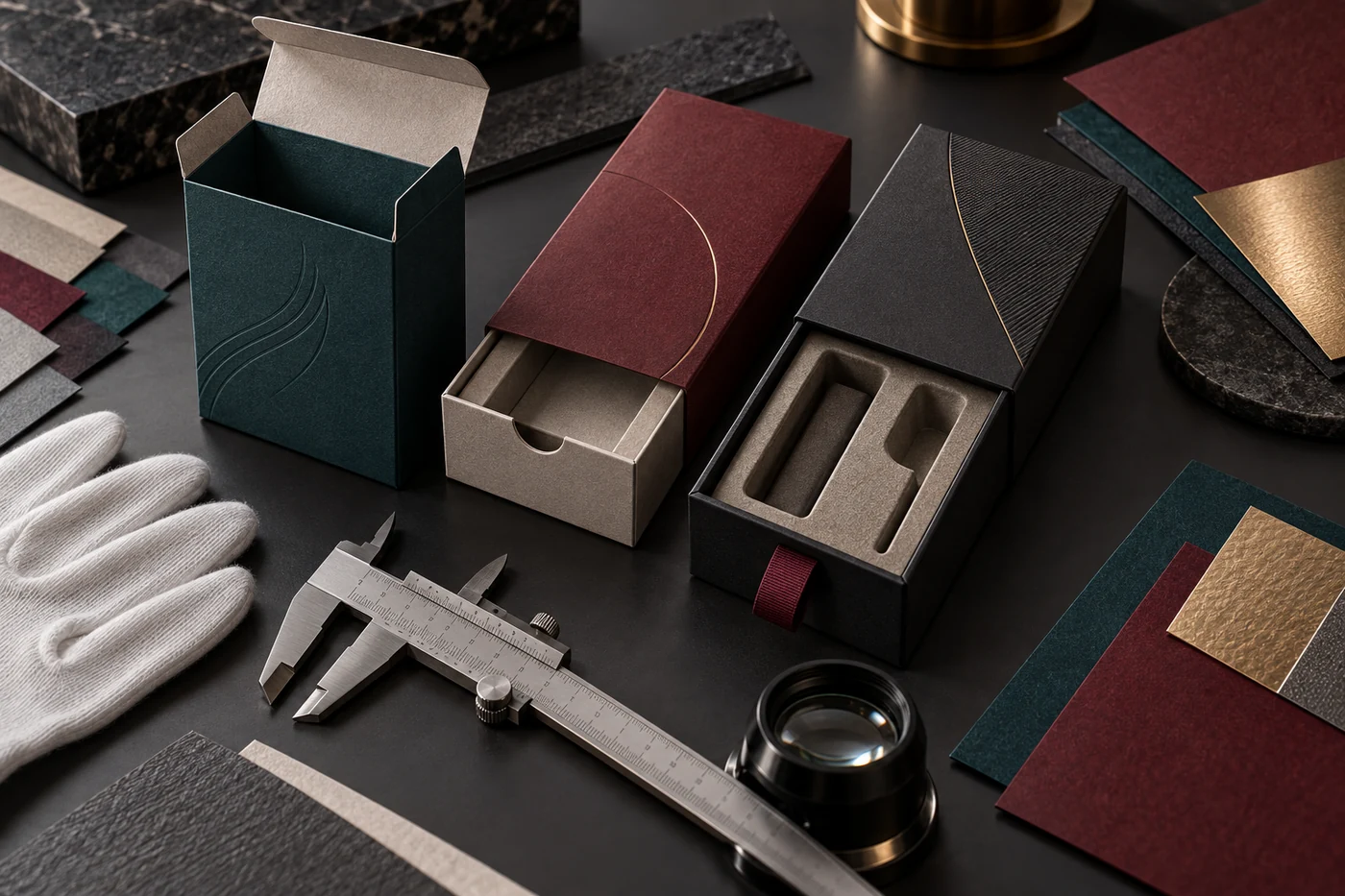

Image note: the illustrations in this article are AI-generated packaging concept visuals. They are not production dielines, tested samples, customer projects or evidence of certified performance.
